Description

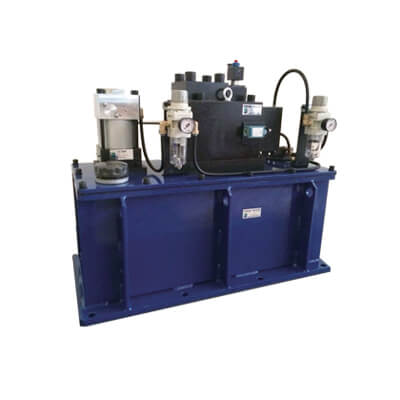

OLV 32 – DETACHED OVERLOAD PROTECTOR WITH OIL TANK
Characteristics
Detached structure, big relief flow rate, fast oil discharge speed, it is recommend to use on the 1000 T press or above:
Relief pressure can be controlled with1 5% of the setting pressure.
Preload pressure and relief pressure are adjusted independently.
| ① | Unload valve model |
| ② | Pneumatic pump specification |
| ③ | Tank capacity |

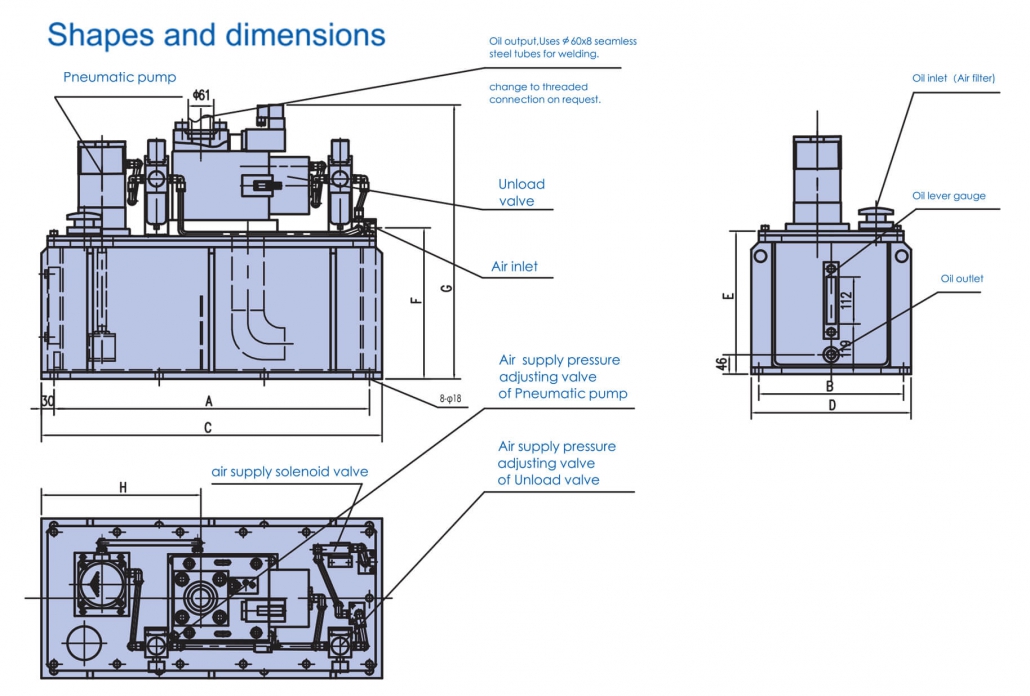

4{/1 Unit: mm
|
Tank capacity |
A |
B |
C |
D |
E |
F |
G |
H |
J |
Applicable To Cylinder Capacity |
| 50L | 250×3 | 344 | 810 | 380 | 340 | 360 | 654 | 380 | 8-ᵠ18 | <21L |
| 65L | 250×3 | 344 | 810 | 380 | 340 | 360 | 654 | 380 | 8-ᵠ18 | <30L |
